Electric 3D Living Cell Microscope
  • Electric 3D Living Cell MicroscopeElectric 3D Living Cell Microscope

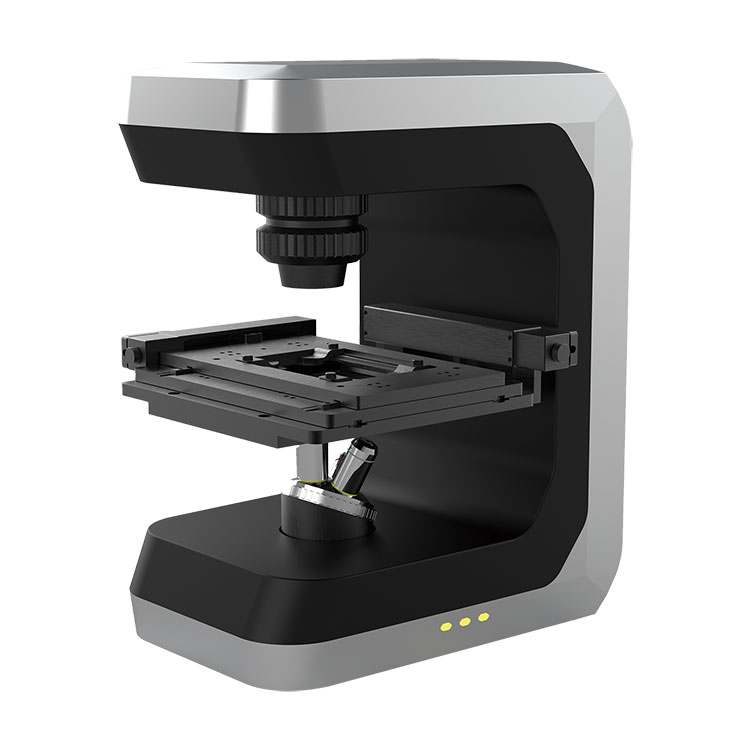

Electric 3D Living Cell Microscope

In response to the testing needs of different customer groups, we have launched the Electric 3D Living Cell Microscope. For many years, BOJIONG has been focused on the field of cell microscopy. Our products boast advanced R&D technology and have a price advantage, covering most of the European and American markets. We look forward to becoming a long-term partner in China.


The magnetic adsorption solid moving platform can accommodate various living cells for measurement and tracking. The Electric 3D Living Cell Microscope offers advantages such as easy operation and precise positioning when making adjustments. There is no need to process the cells, which reduces human intervention and achieves true label-free and non-invasive operation, while simultaneously obtaining quantitative parameters and high-quality images and data at both the single-cell and population levels. It realizes miniaturized interference measurement with high vibration resistance, making it particularly suitable for high-precision detection in fields such as biology, cell culture, and drug research.


Item Specification:


Product name

Electric 3D Living Cell Microscope

size

355mm (length) x 258mm (width) x 437mm (height)

X Y travel range (manual)

X:130mm,Y:90mm

X Y stroke range (electric)

X:110mm,Y:75mm,Wireless control, supporting multi-point automatic inspection

Focusing on Z-axis travel (electric)

25mm stroke, wireless control, 0.001mm adjustment accuracy

Testing samples

Biological cells - can be directly placed in culture dishes for testing - can undergo live examination, transparent material micro/nanostructures

Imaging pixels

2048*2048

Resolution (Vertical and Horizontal)

2nm (longitudinal), 1μm (transverse)

Lighting source

white light

Microscopic objective

Universal objective lens connector, supporting various brands, 5X, 10X, 20X, 50X, 100X

Real time display frame rate

10HZ

software system

3D imaging of cells, real-time video recording of cell morphology, cell tracking, cell segmentation, counting, etc

Adaptable sensors

FIS4-Cell


Feature Of BOJIONG Electric 3D Living Cell Microscope



◆ LED white light illumination

Maximize the maintenance of the living environment of cells

◆ FIS4 interferometric imaging

High precision acquisition of three-dimensional cellular morphology and structure

◆ Support for bright field imaging

Support real-time observation of cell microstructure in Mingchang

◆ Different magnification support

Supports 5X, 10X, 20X, 50X,100X and other magnification observations

◆ Electric load transfer

Electric two-dimensional loading platform, supporting live recording and observation of different culture dishes

◆ Electric focusing

Electric focusing, supporting multi position focusing recording

◆ Real time dynamic recording of cells

Recording real-time dynamics of living cells for long-term observation and recording of living cell processes

◆ Curve generation

Support various analysis curve generation functions


Real time dynamic recording of cells ——displacement of red blood cells at different times and 3D images

Real time dynamic recording of cells ——during the ESC live cell autophagy process Changes in cell state at 20x magnification: 0 hours, 4 hours, and 8 hours

Cell 2D test results

Cell contour map

3D cell map



Small size - can operate stably in the incubator for a long time and perform delayed imaging analysis under normal physiological conditions.

Real time monitoring - Real time monitoring of individual cells while obtaining population data and providing complete quantitative cellular morphological parameters.

No damage - no labeling or staining is required, no phototoxicity, and the true growth status of the recorded cells is restored.

Multiple data - can be reanalyzed for the same sample or result to obtain more experimental data.

Widely applicable - can be used for research on cell proliferation, differentiation, migration, apoptosis, toxicology, and other aspects.

Intelligence - a concise and practical intelligent image analysis software that automatically performs high content quantitative analysis on the obtained images.




Application Of BOJIONG Electric 3D Living Cell Microscope Sensor



This BOJIONG Electric 3D Living Cell Microscope provides a fast, accurate, and non-invasive solution for automatic counting of adherent cells in incubators. Present images and results in real-time and clearly in a graphical manner, generate growth curves that change over time, and simultaneously monitor cell morphology, proliferation rate, and convergence.


Live cell motility testing


Cell movement and migration play important roles in cellular biology research and are of great significance for understanding diseases. Cell migration may be the cause of cancer progression and metastasis of cancer cells. Cell movement is considered random and occurs almost in every cell culture. Cell tracking can be used to distinguish these parameters. BOJIONG Electric 3D Living Cell Microscope allows for monitoring and analyzing the cell movement, migration, and morphology of selected cells, providing detailed information on each cell included in the analysis and its changes over time, as well as the average value of the selected population.



Research on Living Cell Proliferation



BOJIONG Electric 3D Living Cell Microscope Details


BOJIONG Electric 3D Living Cell Microscope combines upright and inverted microscopes, combining the advantages of both. It is convenient and compact, with multiple functions in one machine. Users can easily switch between upright and inverted configurations through rotation, eliminating the need to purchase upright and inverted microscopes separately for different samples. One machine can image multiple samples, reducing costs and saving space.





By flipping the main body of the microscope and flipping the fixed mobile platform, the BOJIONG Electric 3D Living Cell Microscope can be flipped for easy magnification switching and observation in different occasions.



The mobile platform is fixed on the main body of the microscope through magnetic suction, and electric or manually controlled mobile platforms can be replaced as needed.


Electric control stroke X:110mm,Y:75mm

Table size:260mm×153mm




Manual control stroke X: 190mm, Y: 90mm

Table size:220mm×170mm





Replaceable multiple magnification microscope objective



This device can be equipped with microscope objectives of different magnifications: 5X, 10X, 20X, 50X, 100X; Observing the sample on an ultra-high definition display screen, it has unparalleled clarity.



The BOJIONG Electric 3D Living Cell Microscope is equipped with powerful image analysis software that features an intuitive interface and guides users through a straightforward step-by-step process, from experimental setup to result analysis. It allows for the easy creation of color videos and images suitable for peer-reviewed publications. All data can be exported to Excel for further analysis.
