Portable 3D Micro-morphology Detector

Facing a variety of complex detection environments, BOJIONG Optoelectronics has introduced a portable 3D micro-morphology detector. We have always placed customer satisfaction and a deep appreciation for the talent that propels us forward at the core of our business philosophy. We tirelessly work to strengthen our foundation and refine our service offerings. With a global customer base that spans from Europe and America to Asia and our local markets, we cherish the long-standing, positive relationships we have cultivated. We extend our hand in partnership, eager to forge a path to the future together.

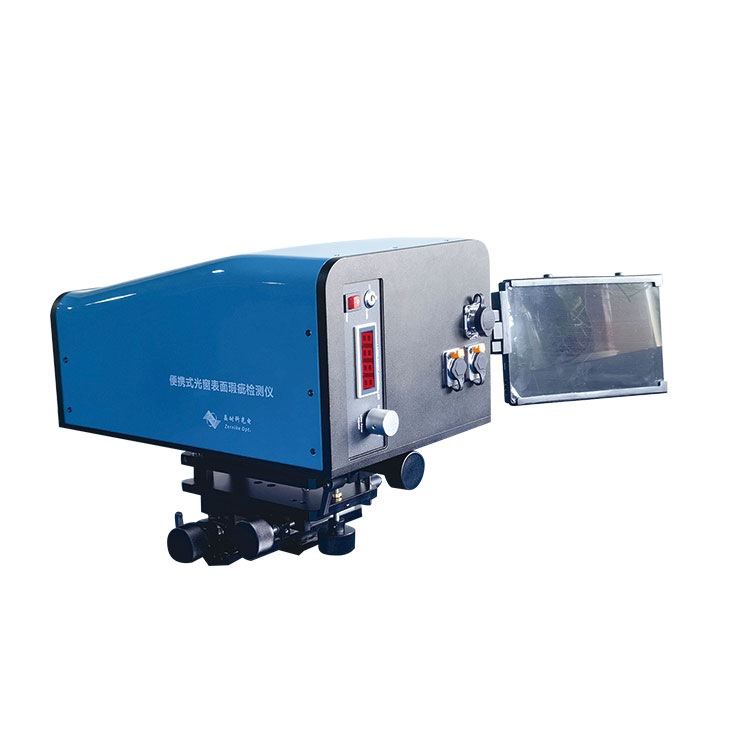

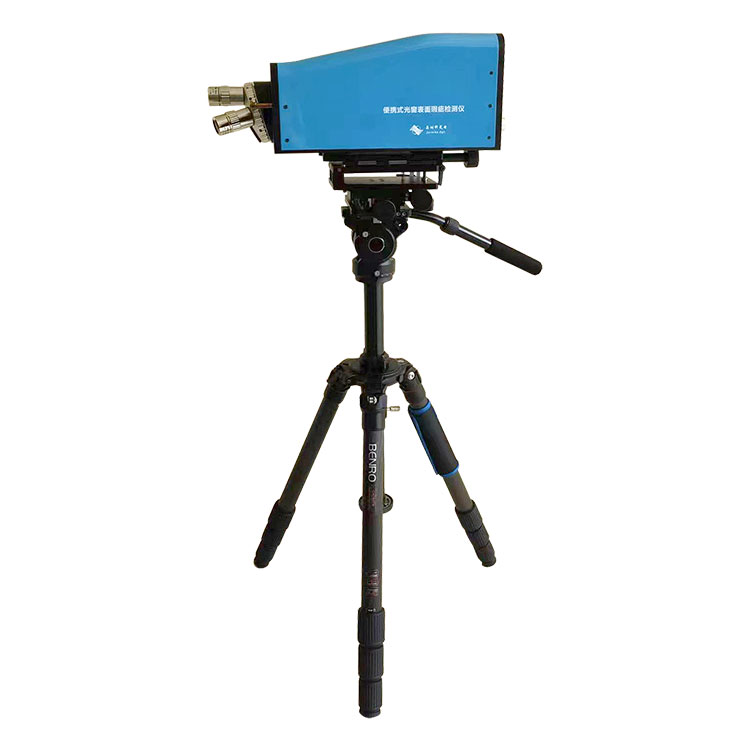

BOJIONG's Portable 3D Micro-morphology Detector features a portable tripod design that allows for quick setup and adjustment both indoors and outdoors. It can achieve coarse and fine adjustments of 120° in pitch and 360° in rotation, ensuring a wide range of applications and high-precision detection. The shear differential interferometry technology enables the system to have a larger dynamic detection range, suitable for a broader spectrum of applications.



BOJIONG Portable 3D Micro-morphology Detector Specification



Portable 3D Micro-morphology Detector adaptive sensor FIS4-HR



◆ Wide spectral range (400nm~1100nm)

◆ High resolution of 90,000 phase points

◆ 2nm RMS High phase resolution

Portable 3D Micro-morphology Detector adaptive sensor FIS4-UHR



◆ Wide spectral range (400nm~1100nm)

◆ Super high resolution of 262144 phase points

◆ 2nm RMS High phase resolution





Feature Of BOJIONG Portable 3D Micro-morphology Detector





◆No reference surface, good vibration resistance

◆Off-site and on-site rapid layout application testing

◆Multi-angle coarse adjustment and fine adjustment, to ensure a large range of high-precision detection

◆Multi-objective lens switching, large field of view, high resolution

◆High cost performance, compact structure, simple operation

◆Powerful digital wavefront reconstruction image processing software package





Application Of BOJIONG Portable 3D Micro-morphology Detector



The BOJIONG Portable 3D Micro-morphology Detector is designed for the meticulous setup, tuning, and quality assurance of light windows. It is a versatile instrument for high-precision optical component evaluation, offering:



Advanced detection of surface defect dimensions, critical for maintaining the integrity and performance of various high-precision optical elements.

A comprehensive assessment of component surface roughness, coupled with the visualization of the sample's three-dimensional micro-morphology, supporting advanced material and surface analysis.

The robust common-path interferometric system ensures reliable operation, with the flexibility to perform online sample detection when mounted on a tripod, suitable for diverse environments.

It operates as a 3D metallurgical microscope, delivering detailed surface micro-pattern imaging and analysis for a wide array of precision materials and components, capturing essential outline and image data.



Standard line width 3D measurement



3D measurement of surface scratch depth of light window





BOJIONG Portable 3D Micro-morphology Detector Details



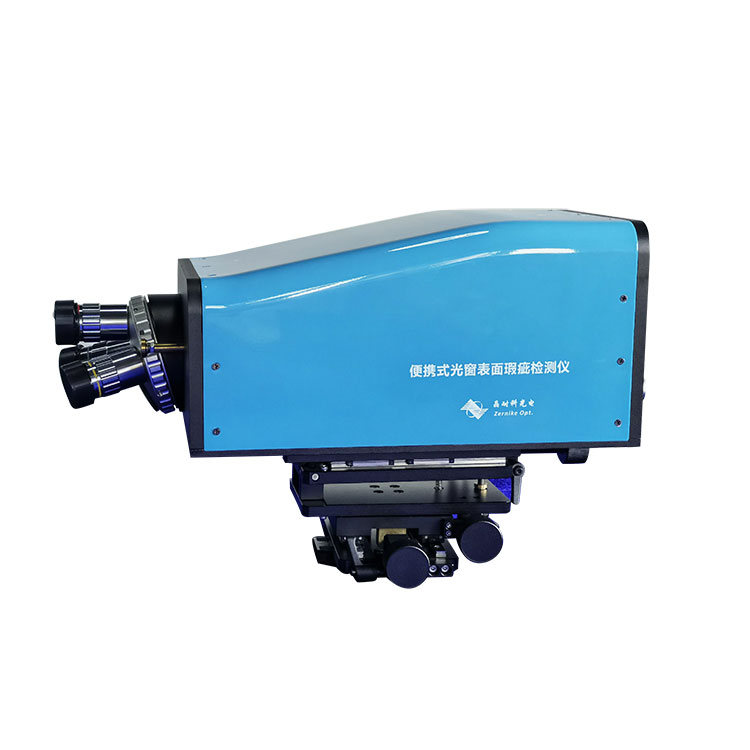

In BOJIONG Portable 3D Micro-morphology Detector inspection, This inspection system is equipped with an advanced dual-camera imaging technology. A high-resolution microscopic lens is specifically designed to identify scratch defects on the surface of optical components and to perform precise measurements of width, depth, and surface roughness. The imaging camera has a wide field of view, enabling rapid identification and measurement of the width of surface defects. Meanwhile, a high-precision digital wavefront interferometric sensor is capable of accurately analyzing the depth of scratches in three dimensions. The system also features 3D guide adjustment along the XYZ axes, as well as pitch and yaw adjustment capabilities, ensuring precise alignment of the target with the equipment's detection optical axis. Moreover, the system is designed to be mounted on a tripod to accommodate various detection targets, including large-aperture light windows and large optical elements, and can be adjusted for inspection in any direction. The common-path interferometric technology used provides excellent vibration resistance and external interference immunity, making it particularly suitable for precise measurement and detection in environments such as workshops and outdoors. The surface shape detection interferometer and microstructure detection profilometer developed by our company using this interferometric sensor have been successfully applied in various fields, with a detection accuracy comparable to that of Zygo interferometers.
