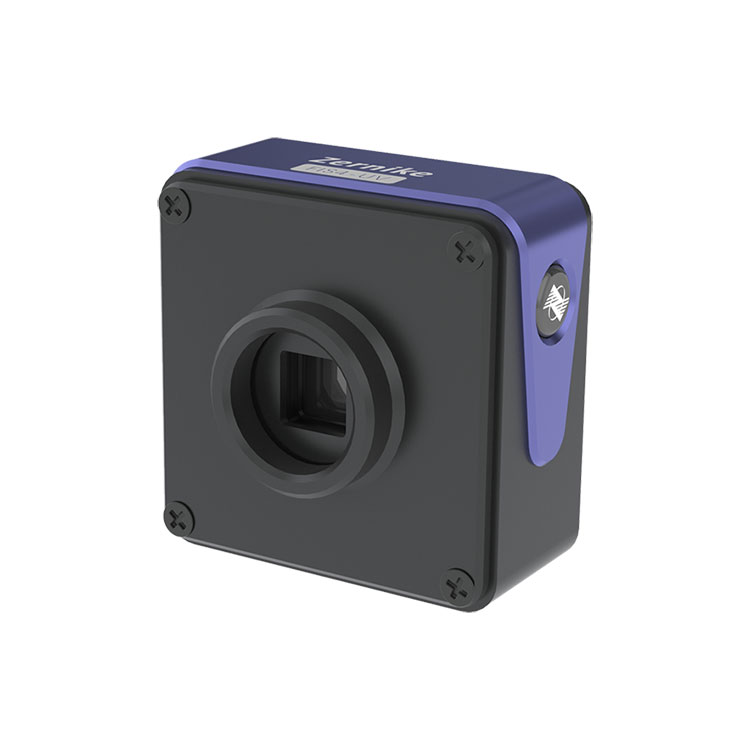

Ultra High Resolution Four-wave Interferometric Sensor1

Ultra High Resolution Four-wave Interferometric Sensor1

BOJIONG a leading Ultra High Resolution Four-wave Interferometric Sensor manufacturer and supplier in China, supports precise measurement and analysis of optical performance. Our products are widely used in key areas such as aerospace, optical manufacturing, energy research, and biomedical. We have established a sound operating mechanism. We look forward to establishing sincere cooperative relationships with global customers to jointly create outstanding achievements.

Compared to traditional microlens array Hartmann sensors, the BOJIONG Ultra High Definition Four-wave Interferometric Sensor not only offers more phase points, ensuring high resolution and the ability to reveal detailed features in measurements, but also has a wider adaptive bandwidth and a greater dynamic range, enabling it to meet a broader range of measurement needs and conditions.

The ultra-high definition resolution of the BOJIONG sensor reaches 512×512 (262,144 phase points), complemented by its wide spectral response from 400 to 1100 nanometers, ensuring high accuracy and reliability under various optical conditions. Moreover, it supports the display of 10 frames of full-resolution real-time 3D results, providing users with immediate, dynamic measurement outcomes, which significantly enhances work efficiency.


Ultra High Resolution Four-wave Interferometric Sensor Specification:



Wavelength range

400nm~1100nm

Target size

7.07mm×7.07mm

Spatial resolution

23.6μm

Sampling resolution

2048×2048

Phase resolution

300×300(90000pixel)

Absolute accuracy

<2nmRMS

Dynamic range

10nmRMS

Sampling rate

110μm(150λ)

Real-time processing speed

24fps

Interface type

10Hz(At full resolution)

Dimension

GIGE

Weight

56.5mm×43mm×41.5mm

Wavelength range

about 120g



Feature Of Ultra High Resolution Four-wave Interferometric Sensor:





◆Broad spectrum 400nm~1100nm band

◆2nm RMS high phase resolution

◆Ultra-high resolution of 512×512 (262144) phase points

◆Single-channel light self-interference, no reference light required

◆ultra-high vibration resistance, no need for optical vibration isolation

◆Just like imaging, easy and fast optical path construction

◆Supports collimated beams and large NA converged beams


Application Of Ultra High Resolution Four-wave Interferometric Sensor:



ThisBOJIONG Ultra High Resolution Four-wave Interferometric Sensor used in laser beam wavefront detection, adaptive optics, surface shape measurement, optical system calibration, optical window detection, optical plane, spherical surface shape measurement, surface roughness detection.



laser beam wavefront detection



Optical planar surface shape measurement



Optical spherical surface shape measurement



Aberration measurement of optical systems



Optical window piece detection



Measurement of lattice distribution inside the material



Adaptive optics - wavefront detection response in Zernike mode







High Resolution Four-wave Interferometric Sensor Details




BOJIONG High Resolution Four-wave Interferometric Sensor developed by a team of professors from Zhejiang University and Nanyang Technological University of Singapore, Adopting domestic patented technology, this sensor combines diffraction and interference to achieve four-wave transverse shear interference, offering superior detection sensitivity and vibration resistance.

It can perform real-time, high-speed dynamic interferometry without vibration isolation, with a real-time measurement frame rate exceeding 10 frames. The FIS4 sensor's measurement range covers 200nm to 15μm, featuring an ultra-high phase resolution of 512×512 (260,000 phase points). It has measurement repeatability better than 1/1000λ (RMS) and a sensitivity of 2nm.

This sensor is suitable for laser beam quality analysis, plasma flow field detection, real-time measurement of high-speed flow field distribution, optical system image quality evaluation, microscopic profile measurement, and quantitative phase imaging of biological cells.





FIS4 Technical parameters of each series of products



Product

FIS4-UV

FIS4-HR

FIS4-UHR

FIS4-HS

FIS4-Cell

FIS4-NIR

Wavelength range

200~450nm

400~1100nm

400~1100nm

400~1100nm

400~1100nm

900~1200nm

Target size mm²

13.3×13.3

7.07×7.07

13.3×13.3

10.24×10.24

7.07×7.07

13.3×13.3

Spatial resolution

26μm

23.6μm

26μm

24.4μm

23.6μm

26μm

Image pixel

-

2048×2048

-

-

2048×2048

-

Phase output resolution

512×512

(262144pixel)

300×300(90000pixel)

512×512(262144pixel)

420×420(176400pixel)

300×300(90000pixel)

512×512(262144pixel)

Phase resolution

<2nmRMS

<2nmRMS

<2nmRMS

<2nmRMS

<2nmRMS

<2nmRMS

Absolute accuracy

10nmRMS

10nmRMS

15nmRMS

10nmRMS

10nmRMS

15nmRMS

Dynamic range

90μm

(256λ)

110μm

(150λ)

162μm

(256λ)

132μm

(210λ)

110μm

(150λ)

270μm

(256λ)

Sampling rate

32fps

24fps

45fps

107fps

24fps

45fps

Real-time processing speed

10Hz

(Full resolution)

10Hz

(Full resolution)

10Hz

(Full resolution)

10Hz

(Full resolution)Supports delayed batch processing

10Hz

(Full resolution)

10Hz

(Full resolution)

Interface type

USB3.0

GIGE

USB3.0

GIGE

GIGE

USB3.0

External interface

-

-

-

-

C port

-

Size mm²

70x46.5x68.5

56.5x43x41.5

70x46.5x68.5

56.5x43x41.5

56.5x43x41.5

70x46.5x68.5

weight

about240g

about120g

about240g

about120g

about120g

about240g
