FIS4 HR-W Wavefront Detector

Introducing the BOJIONG FIS4 HR-W Wavefront Detector , a highly efficient interferometric measurement tool meticulously crafted for industrial-grade applications, cutting-edge scientific research, and the national security sector. With its exceptional performance, this sensor provides users with unprecedented wavefront detection capabilities, empowering users across various industries to achieve breakthroughs in the field of precision measurement.

This BOJIONG sensor boasts an astonishingly high resolution of up to 300×300 (90,000) phase points and a wide spectral response range of 400-1100nm, ensuring outstanding precision and reliability across diverse optical measurement applications. Its unique technological advantage lies in the adoption of patented random coded four-wave diffraction technology, which eliminates the need for complex phase-shifting operations. Self-interference of the wavefront can be achieved in a single measurement, and interference patterns are generated directly at the rear image plane position.

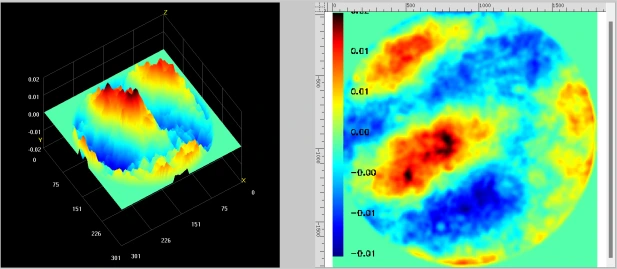

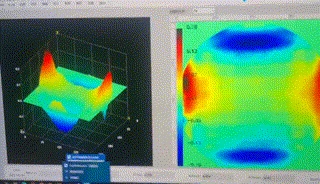

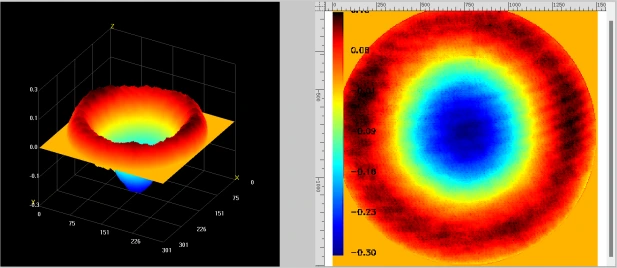

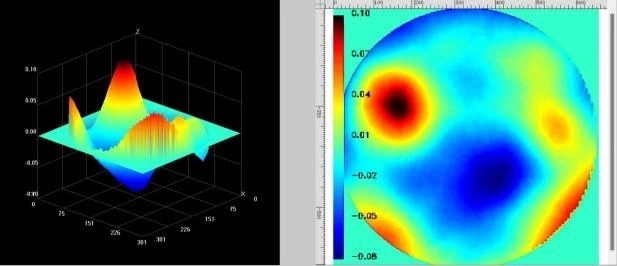

Even more impressively, the BOJIONG sensor is capable of displaying 3D measurement results in full resolution in real-time, with a frame rate of up to 10fps, instantly presenting the three-dimensional topography of the wavefront. This sensor is perfectly suited for laser beam wavefront detection, adaptive optical systems, optical system calibration, optical window inspection, and the measurement of optical plane and spherical shapes. Furthermore, it can precisely detect surface roughness and micro-profiles, making its application areas extremely broad.

The BOJIONG  FIS4 HR-W Wavefront Detector is easy to operate and possesses ultra-high vibration resistance and stability, providing users with an ideal wavefront sensing measurement solution. It achieves nanometer-level precision measurements without the need for vibration isolation, significantly improving measurement efficiency and accuracy. Choosing BOJIONG means choosing a new standard for efficient, precise, and stable wavefront measurement.

Specification

Feature

◆100% domestically developed

◆Single-path light self-interference, no reference mirror required

◆Wide spectrum 400nm~1100nm band

◆2nm RMS high phase resolution

◆Strong vibration resistance, no need for optical vibration isolation

◆Easy and fast interference light path construction

◆Supports collimated beams and large NA converging beams

 Application

This BOJIONG FIS4 HR-W Wavefront Detectorused in laser beam wavefront detection, adaptive optics, surface shape measurement, optical system calibration, optical window detection, optical plane, spherical surface shape measurement, surface roughness detection

 Details

Bojiong FIS4 HR-W wavefront detector was developed by a team of professors from Zhejiang University and Nanyang Technological University, Singapore. The sensor is suitable for laser beam quality analysis, plasma flow field detection, real-time measurement of high-speed flow field distribution, optical system image quality evaluation, microscopic profile measurement, and quantitative phase imaging of biological cells. It is specially developed for convenient interferometric measurement in industry, scientific research, and national defense. With high resolution of 300×300 (90,000) phase points, wide spectral response of 400-1100nm, and 10 frames of full-resolution real-time 3D result display, it provides an ideal wavefront sensing measurement tool for beam wavefront detection, adaptive optics, optical system calibration, optical window detection, optical plane surface shape, spherical surface shape measurement, surface roughness, and surface microscopic profile detection.

FIS4 HR-W uses patented random coded four-wave diffraction technology to achieve self-interference of a single-channel measured wavefront, and interference occurs at the rear image plane position. It has low requirements on the coherence of the light source, does not require phase shifting, and can achieve interferometric measurement using an ordinary imaging system. It has ultra-high vibration resistance and ultra-high stability, and can achieve nm-level precision measurement without vibration isolation. Compared with the microlens array Hartmann sensor, it has more high-resolution phase points, a wider adaptive band range, a larger dynamic range, and better cost performance.
