The imaging process of this biological cell wavefront analyzer does not require labeling or staining. It is capable of live three-dimensional imaging with a high frame rate of up to 24 frames per second (fps), making it an ideal tool for label-free three-dimensional detection of living cells, biological tissue examination, germ cell testing, and the examination of micro/nano structures.
We hope to establish friendly cooperative relationship with your company with high quality products, reasonable price, considerate service and create a better future hand in hand.
|
Product name |

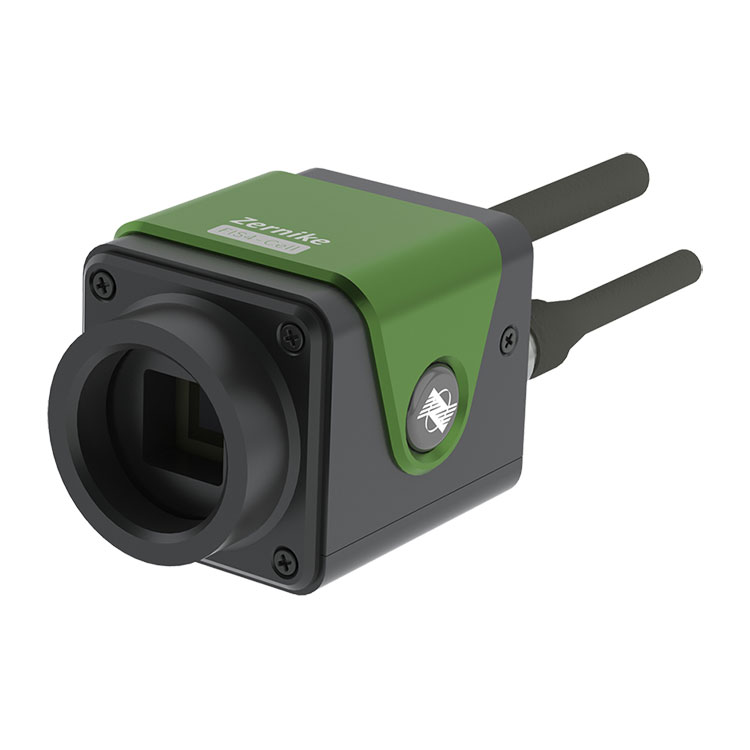

Biological Cell Wavefront Analyzer |
|
Wavelength range |
400nm~1100nm |
|
Target size |
7.07mm×7.07mm |
|
Spatial resolution |
23.6μm |
|
Image pixel |
2048×2048 |
|
Phase output resolution |
300×300（90000pixel） |
|
Phase resolution |
＜2nmRMS |
|
Absolute accuracy |
10nmRMS |
|
Dynamic range |
110μm（150λ） |
|
Sampling rate |
24fps |
|
Real-time processing speed |
10Hz（At full resolution） |
|
Interface type |
GIGE |
|
External interface |
Cport |
|
Size |
56.5mm×43mm×41.5mm |
|
Weight |
about 120g |
◆Broad spectrum 400nm~1100nm band
◆Label-free 3D live cell imaging
◆Single-channel light self-interference, no reference light required
◆Compact size, plug and play
◆Extremely strong anti-vibration performance, no need for optical vibration isolation
◆Suitable for all optical microscope upgrades and extensions
◆Supports LED white light and short-wave infrared light source
This BOJIONG Biological Cell Wavefront Analyzer used in labeling free 3D living cell detection, biological tissue detection, germ cell detection, micro and nano structure detection.
|
Unmarked 3D live cell detection optical path detection optical path |
3D Living cell microscope - Sample measurement of roundworm eggs |
|
Sample measurement of ovarian granulosa cell tumor |
Sample measurement through micro - nano structure |
BOJIONG Biological Cell Wavefront Analyzer developed by a team of professors from Zhejiang University and Nanyang Technological University of Singapore, with domestic patented technology, it combines diffraction and interference to achieve a common four-wave transverse shear interference, with superior detection sensitivity and anti-vibration performance, and can realize real-time and high-speed dynamic interferometry without vibration isolation. The real-time measurement shows a frame rate of more than 10 frames. At the same time, the FIS4 sensor has an ultra-high phase resolution of 512×512 (260,000 phase points), the measurement band covers 200nm~15μm, the measurement sensitivity reaches 2nm, and the measurement repeatability is better than 1/1000λ (RMS). It can be used for laser beam quality analysis, plasma flow field detection, real-time measurement of high-speed flow field distribution, image quality evaluation of optical system, microscopic profile measurement and quantitative phase imaging of biological cells.
|
FIS4 Technical parameters of each series of products |
||||||
|
|
|
|
|
|
|
|
|
Product |
FIS4-UV |
FIS4-HR |
FIS4-UHR |
FIS4-HS |
FIS4-Cell |
FIS4-NIR |
|
Wavelength range |
200~450nm |
400~1100nm |
400~1100nm |
400~1100nm |
400~1100nm |
900~1200nm |
|
Target size mm² |
13.3×13.3 |
7.07×7.07 |
13.3×13.3 |
10.24×10.24 |
7.07×7.07 |
13.3×13.3 |
|
Spatial resolution |
26μm |
23.6μm |
26μm |
24.4μm |
23.6μm |
26μm |
|
Image pixel |
- |
2048×2048 |
- |
- |
2048×2048 |
- |
|
Phase output resolution |
512×512 （262144pixel） |
300×300（90000pixel） |
512×512（262144pixel） |
420×420（176400pixel） |
300×300（90000pixel） |
512×512（262144pixel） |
|
Phase resolution |
＜2nmRMS |
＜2nmRMS |
＜2nmRMS |
＜2nmRMS |
＜2nmRMS |
＜2nmRMS |
|
Absolute accuracy |
10nmRMS |
10nmRMS |
15nmRMS |
10nmRMS |
10nmRMS |
15nmRMS |
|
Dynamic range |
90μm （256λ） |
110μm （150λ） |
162μm （256λ） |
132μm （210λ） |
110μm （150λ） |
270μm （256λ） |
|
Sampling rate |
32fps |
24fps |
45fps |
107fps |
24fps |
45fps |
|
Real-time processing speed |
10Hz (Full resolution) |
10Hz (Full resolution) |
10Hz (Full resolution) |
10Hz (Full resolution)Supports delayed batch processing |
10Hz (Full resolution) |
10Hz (Full resolution) |
|
Interface type |
USB3.0 |
GIGE |
USB3.0 |
GIGE |
GIGE |
USB3.0 |
|
External interface |
- |
- |
- |
- |
C port |
- |
|
Size mm² |
70x46.5x68.5 |
56.5x43x41.5 |
70x46.5x68.5 |
56.5x43x41.5 |
56.5x43x41.5 |
70x46.5x68.5 |
|
weight |
about240g |
about120g |
about240g |
about120g |
about120g |
about240g |
