Portable 3D Micro topography Inspection
  • Portable 3D Micro topography InspectionPortable 3D Micro topography Inspection

Portable 3D Micro topography Inspection

In some special environments, the objects to be measured are not easy to move. There is an urgent need for a portable measuring tool. At this time, the Portable 3D Micro topography Inspection introduced by BOJIONG has had an immediate effect. We always place customer satisfaction and a deep appreciation for the talent that propels us forward at the core of our business philosophy. We tirelessly work to strengthen our foundation and refine our service offerings. With a global customer base that spans from Europe and America to Asia and our local markets, we cherish the long-standing, positive relationships we have cultivated. We extend our hand in partnership, eager to forge a path to the future together.

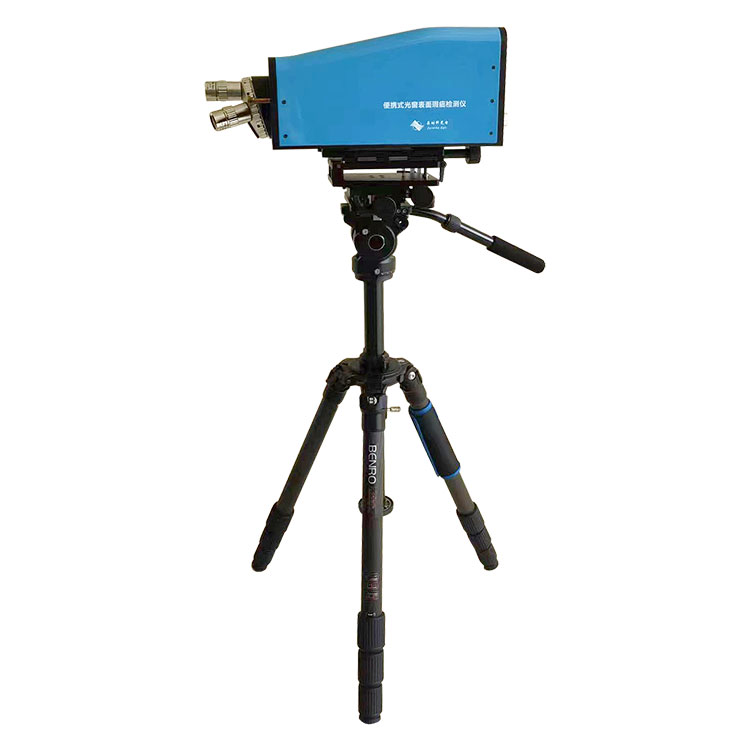

Portable 3D Micro topography Inspection not only allows for the switching of multiple lenses, offering a wide field of view and high resolution, but also enables quick setup both on-site and off-site. The portable tripod design facilitates rapid deployment both indoors and outdoors; the damping gimbal combined with a fine-tuning mechanism enables coarse and fine adjustments of 120° pitch and 360° rotation, ensuring a broad range of high-precision detection capabilities. Utilizing shear differential interference technology, the system has a larger dynamic range and a wider range of applications.



BOJIONG Portable 3D Micro topography Inspection Specification



Portable 3D Micro-topography Inspection adaptive sensor FIS4-HR



◆ Wide spectral range (400nm~1100nm)

◆ High resolution of 90,000 phase points

◆ 2nm RMS High phase resolution

Portable 3D Micro topography Inspection adaptive sensor FIS4-UHR



◆ Wide spectral range (400nm~1100nm)

◆ Super high resolution of 262144 phase points

◆ 2nm RMS High phase resolution



Feature Of BOJIONG Portable 3D Micro topography Inspection




◆No reference surface, good vibration resistance

◆Multi-objective lens switching, large field of view, high resolution

◆Off-site and on-site rapid layout application testing

◆Multi-angle coarse adjustment and fine adjustment, to ensure a large range of high-precision detection

◆High cost performance, compact structure, simple operation

◆Powerful digital wavefront reconstruction image processing software package


 Application Of BOJIONG Portable 3D Micro topography Inspection



This BOJIONG Portable 3D Micro topography Inspection suitable for light window installation, adjustment, and detection。





Standard line width 3D measurement



3D measurement of surface scratch depth of light window





BOJIONG Portable 3D Micro topography Inspection Details



In BOJIONG Portable 3D Micro topography Inspection inspection, a dual-camera imaging system is used. The system uses a microscope system to detect scratch defects on the surface of optical components for width, depth, and surface roughness detection.



The imaging camera has a large field of view and can quickly find surface defects and detect scratch width; the digital wavefront interference sensor can realize 3D detection of scratch depth.



The system is equipped with XYZ three-dimensional guide adjustment and pitch and yaw adjustment, which can realize the alignment of the target and the detection optical axis of the equipment, and can be placed on a tripod to achieve different detection targets, such as large-diameter light windows and large-diameter optical elements. Adjustment detection in any direction.



The system adopts common-path interference technology. The interference system has excellent anti-vibration and anti-external interference characteristics, so it is particularly suitable for measurement and detection in workshops, outdoor and other environments. The surface shape detection interferometer and microstructure detection profilometer developed by our company using this interference sensor have been successfully used in relevant units, and their accuracy reaches the same index as the Zygo interferometer.
